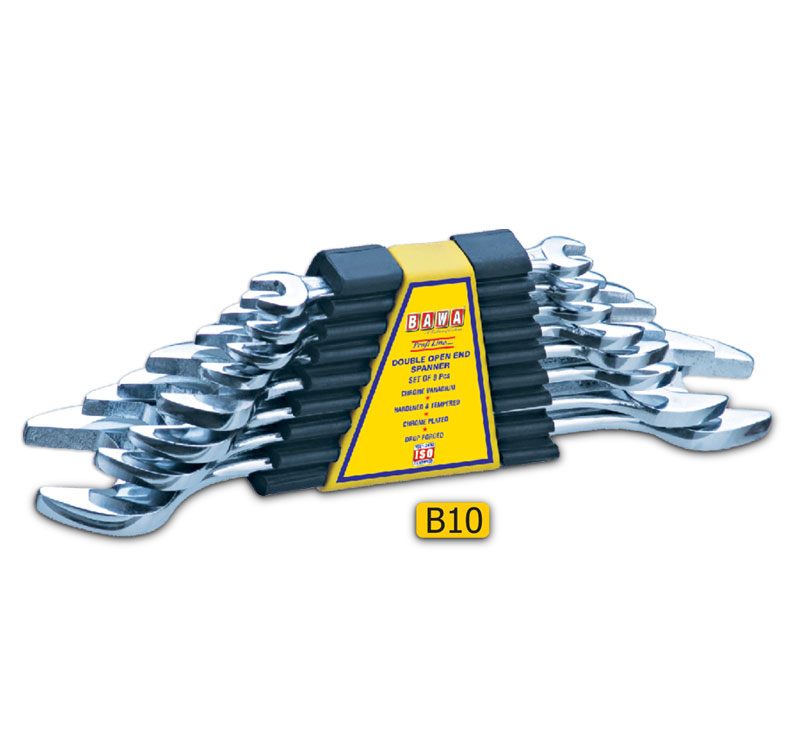

6201 - DOUBLE OPEN END SPANNERS (CARBON STEEL)

6201

DOUBLE OPEN END SPANNERS (CARBON STEEL)

RECESSED PANEL
HEAD SET AT 15° ANGLE
CARBON STEEL
DULY HARDENED AND TEMPERED

Note:
Finish to order -Head Matt/ Polished Packing to Order -Bulk or Individual Carton or Clip or Pouch / Wallet / Skin / Shrink / Blister / Window box.

DROP FORGED DOUBLE OPEN END SPANNERS (6201)

Size MM	Size SAE	Length (mm)	Weight Gms (Approx.)
6 X 7	1/4 X 5/16	85	15
8 X 9	5/16 X 11/32	102	20
-----	5/16 X 3/8	102	20
8 X 10	-----	102	20
10 X 11	3/8 X 7/16	112	30
10 X 13	-----	120	35
12 X 13	7/16 X 1/2	129	45
14 X 15	1/2 X 9/16	148	55
13 X 17	------	158	85
14 X 17	9/16 X 5/8	160	90
16 X 17	19/32 X 11/16	160	90
17 X 19	5/8 X 3/4	182	115
18 X 19	-----	182	115
19 X 22	3/4 X 7/8	200	145
20 X 22	25/32 X 7/8	200	145
21 X 23	-----	200	145
22 X 24	7/8 X 15/16	212	180
24 X 26	15/16 X 1	225	225
24 X 27	-----	225	225
25 X 28	1 X 1.1/8	236	260
27 X 32	1.1/16 X 1.1/4	250	405
30 X 32	1.1/8 X 1.1/4	250	400

DROP FORGED DOUBLE OPEN END SPANNERS (6201)

Code	Sets In SAE	Weight Gms
50 S	1/4X5/16, 3/8X7/16, 1/2X9/16, 19/32X11/16, 5/8X3/4	305
51 S	5/16X11/32, 3/8X7/16, 1/2X9/16, 19/32X11/16, 5/8X3/4	310
60 S	1/4X5/16, 3/8X7/16, 1/2X9/16, 19/32X11/16, 5/8X3/4, 25/32X7/8	450
61 S	5/16X11/32, 3/8X7/16, 1/2X9/16, 19/32X11/16, 5/8X3/4, 25/32X7/8	455

Code	Sets In MM	Weight Gms
60 M	6X7, 8X9, 10X11, 14X15, 16X17,18X19	325
61 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17	255
62 M	8X9, 10X11, 12X13, 14X15, 16X17, 18X19	355
70 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17, 18X19	370
80 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17, 18X19, 20X22	515
100 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17, 18X19, 20X22, 21X23, 24X27	885
101 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17, 18X19, 20X22, 24X27, 30X32	1140
120 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17, 18X19, 20X22, 21X23, 24X26, 25X28, 27X32	1550
121 M	6X7, 8X9, 10X11, 12X13, 14X15, 16X17, 18X19, 20X22, 21X23, 24X27, 25X28, 30X32	1545
